Air Fry ModeUses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.*
*When compared to deep frying.
Dishwasher-Safe Air Fry BasketAllows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
Even-Heat™ True ConvectionEVEN-HEAT True Convection for consistent baking and roasting

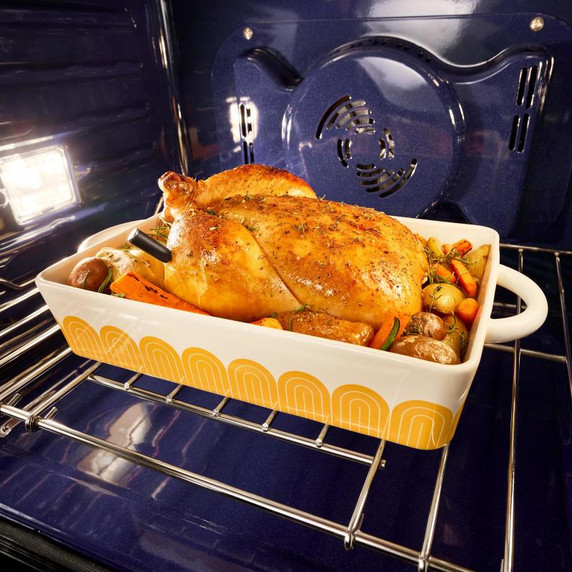

Integrated Meat ThermometerTakes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
EasyConvect™ Conversion SystemAutomatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.

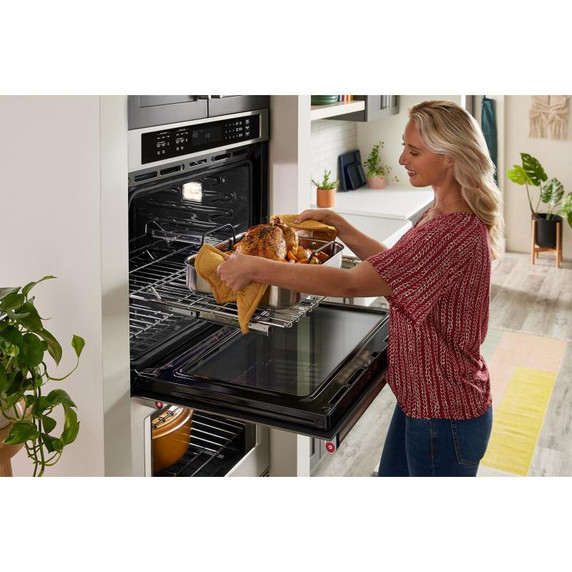

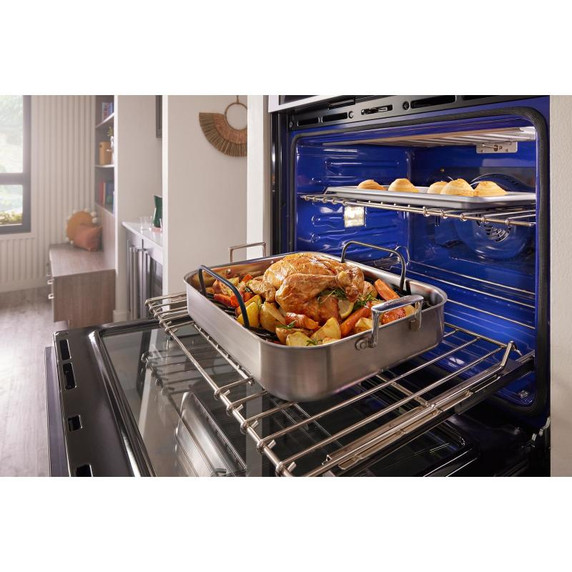

SatinGlide™ Roll-Out Extension RackMakes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
4,000-Watt Broil ElementUses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.
FIT System Limited GuaranteeAllows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.*
*On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified.
Even-Heat™ PreheatRaises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.
Self-Close DoorsFeature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
Self-Cleaning CycleUses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
5.0 Cu. Ft. Oven CapacityProvides room to cook multiple dishes, so you can cook a whole turkey or roast and sides all at once.
Star-K CertifiedTo meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
What's in the boxDouble Wall Oven includes
- Dishwasher-Safe Air Fry Basket
- Integrated Meat Thermometer
Country Of OriginUSA
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesW11570323, W11551866
Hz60
Volts240
Power Cord IncludedNo
Amps40
ULYes
CULYes
Energy Rating Kwh Year355

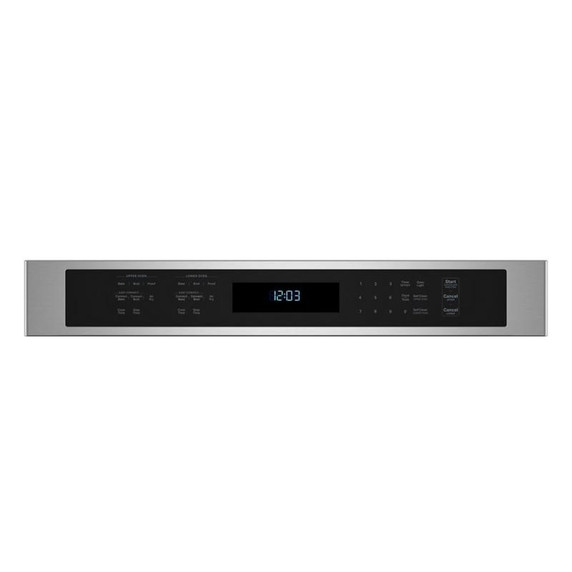

Control TypeElectronic
Display ColorWhite
Handle MaterialMetal
Handle ColorStainless Steel
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Interior CoatingPorcelain
Light ControlOven Light Touch Pad
Number Of Broil Elements1
Light TypeHalogen
Interior ColorBlue
Convection FunctionsBake; Broil; Convection Conversion
Bake Element Power2800WBoth
Broiler Element Power4000WBoth
Lower Oven Interior Depth In Inches19.0
Lower Oven Interior Height In Inches18.0
Lower Oven Number Of Oven Lights2
Number Of Bake Elements2
Number Of Lower Oven Racks3
Number Of Lower Rack Guides6
Number Of Upper Oven Racks3
Number Of Upper Rack Guides6
Upper Oven Interior Depth In Inches19.0
Upper Oven Interior Height In Inches18.0
Upper Oven Number Of Oven Lights2
Oven Cooking SystemConvection Both
Upper Oven Interior Width In Inches25.0
Convection Element Power Watts3200 Both
Lower Oven Interior Width In Inches25
Fuel TypeElectric
Size In30
Language ConversionEnglish/French/Spanish
Power On Indicator LightYes

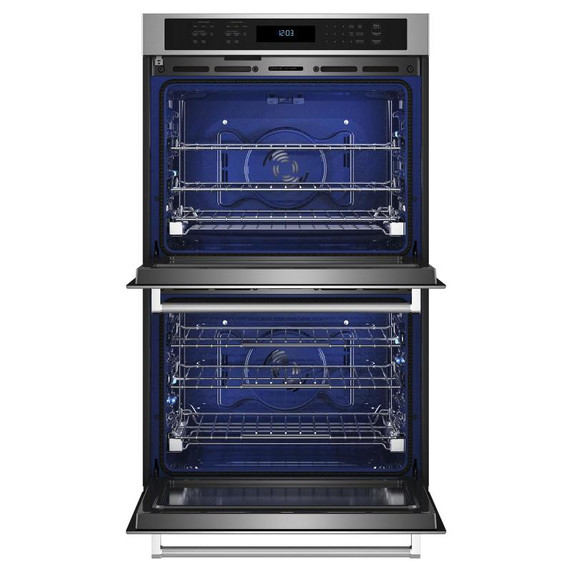

Oven ConfigurationDouble Oven
Connectivity
Annual Energy Usage Kwh355
Carton Depth30.8"
Carton Height53.5"
Carton Width34.8"
Depth Closed Excluding Handles24.5"
Depth Closed Including Handles27.13"
Depth With Door Open 90 Degree46.75"
Depth27.13"
Gross Weight296.0 lbs.
Height50.81"
Net Weight270.0 lbs.
Width29.75"
Cutout Depth24.0"
Cutout Height50.25"
Cutout Width28.5"
Capacity FT3 (cubic feet)10.0
