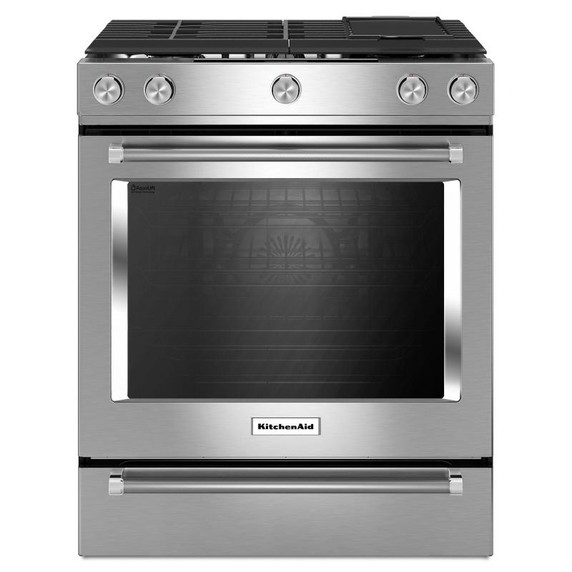

KitchenAid® 30-Inch 5-Burner Dual Fuel Convection Front Control Range with Baking Drawer YKSDB900ESS
KitchenAid
KitchenAid® 30-Inch 5-Burner Dual Fuel Convection Front Control Range with Baking Drawer YKSDB900ESS
Baking drawerAdds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes
Even-Heat™ True ConvectionProduces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
Steam RackOffers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
7.1 cu ft total capacityThis electric freestanding range provides an extra-large cooking capacity in the oven for multiple dishes at once and gives you the flexibility of a separate temperature zone in the baking drawer.
5 burners (5k, 8k, 9.2k, 15k and 19k)Provides the perfect range of cooking power from 5,000 to 19,000 BTU, so you can go from a rolling boil to a delicate simmer.
EasyConvect™ Conversion SystemTakes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
FIT GuaranteeIs our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
Aqualift®Cleans your oven in less than an hour without odours and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.

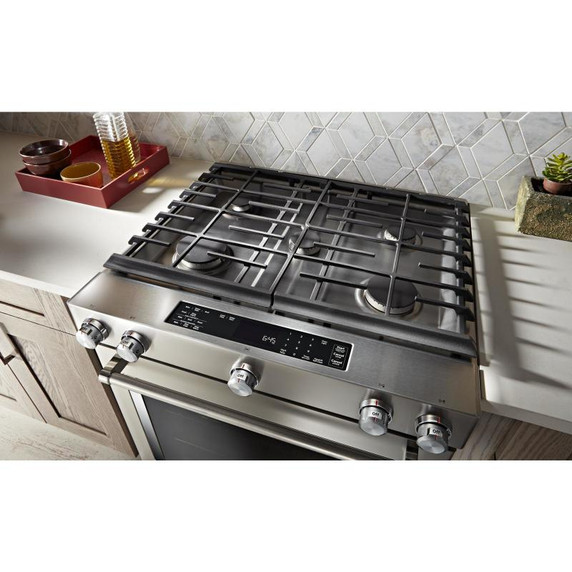

Glass-Touch ControlsOffer an intuitive, easy-to-use touch screen experience.
Side Trim Accessory KitThis optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainCast Iron Grates
Extended Service Plan ParentEW09IW4Y, EW09IW2Y, EW09IW1Y
Optional AccessoriesW10731885, W10115773, W10285447, W10731887, W10675027, W10655448, W10675028, W10731886, W10655450, W10655449, W10675026
Product To Product PairsKVWB600DSS, KVWB400DSS, UVL5430JSS, KVUB600DSS, KVWB600HBS, KVUB400GSS
Electrical
Hz60
Volts240
Amps40
Certifications
ULYes
ADA CompliantYes
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Drawer TypeBaking Drawer
Controls
Knob TypeWeighted
Knob ColorStainless Steel
Electronic Display TypeDigital
Features
GriddleYes
Automatic Convection Conversion Temperature AdjustYes
Power Outage CompatibleNo
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationSlide-In
Details
Broiler LocationTop of Oven
Convection FunctionsBake; Broil; Roast
Hidden Bake ElementYes
Interior ColorGrey
Number Of Oven Lights2
Oven Cooking SystemConvection
Oven Light TypeIncandescent
Convection Element TypeFan
Oven Control TypeElectronic Touch
Broiler Element Power4000W
Number Of Oven Racks3
Number Of Rack Guides7
Bake Element Power3600W
Oven Rack Type1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack
Oven Interior Width In Inches24.13
Convection Element Power Watts3200
Oven Interior Depth In Inches20.13
Oven Cleaning TypeAquaLift® Self-Clean
Description
Size In30
Range TypeSlide-in
Cooktop Details
Left Rear Element Burner Size6in.
Right Rear Element Burner Size6in.
Number Of Cooking Element Burners5
Left Front Element Burner Size12in./9in./6in.
Right Front Element Burner Size10in.
Auto Re IgnitionNo
Number Of Grates2
Cooktop Surface ColorStainless Steel

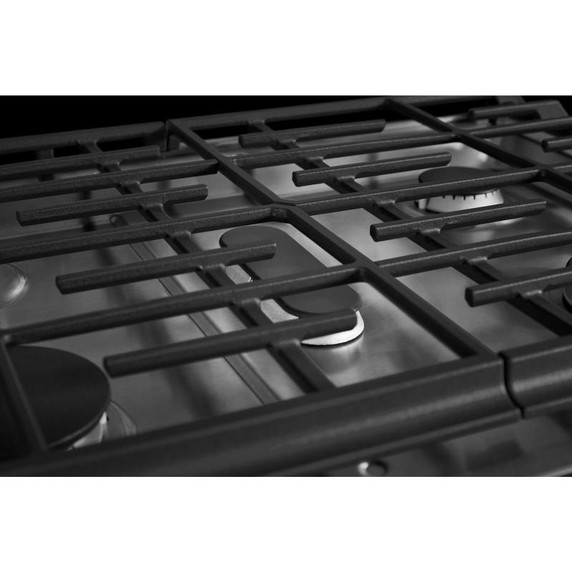

Grate DetailsCast Iron Grates; Continuous; Dishwasher Safe; Matte Finish
Ignition TypeÉlectroniques
Carton Depth30.51"
Carton Height43.5"
Carton Width31.5"
Depth Closed Excluding Handles26.38"
Depth Closed Including Handles28.88"
Gross Weight200.0 lbs.

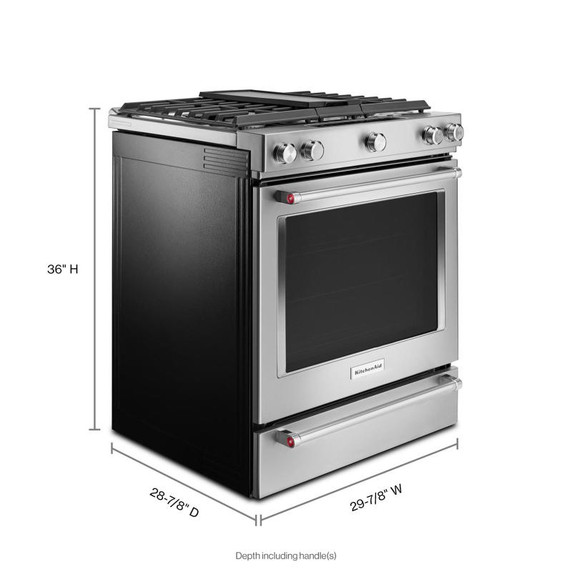

Height36.0"
Width29.88"
Capacity FT3 (cubic feet)7.1
