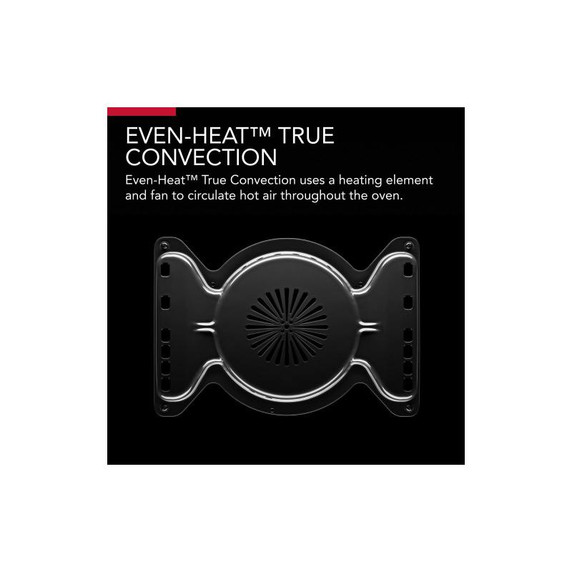

Even-Heat™ True ConvectionProduces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.

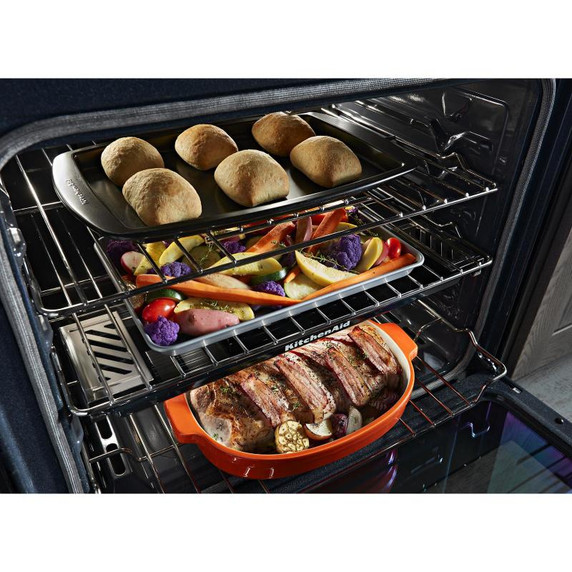

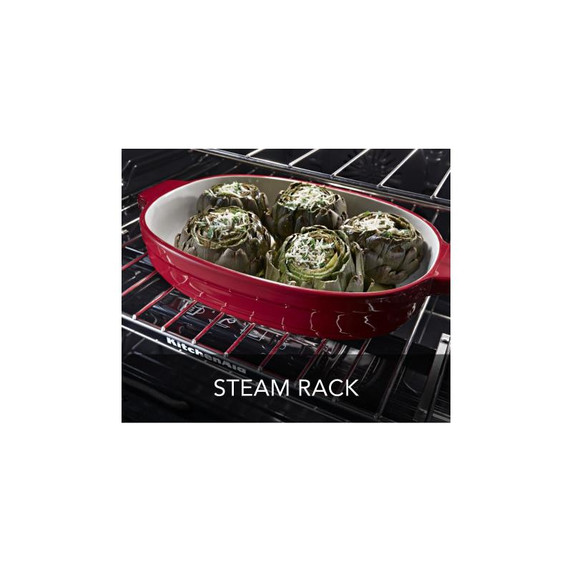

Steam RackOffers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
5.8 cu ft. Oven CapacityThis gas slide-in range provides a large cooking capacity that’s perfect for multiple dishes at once.
5 burners (5k, 8k, 9.2k, 15k and 17k)Provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.
EasyConvect™ ConversionTakes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
FIT GuaranteeIs our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
Aqualift®Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.

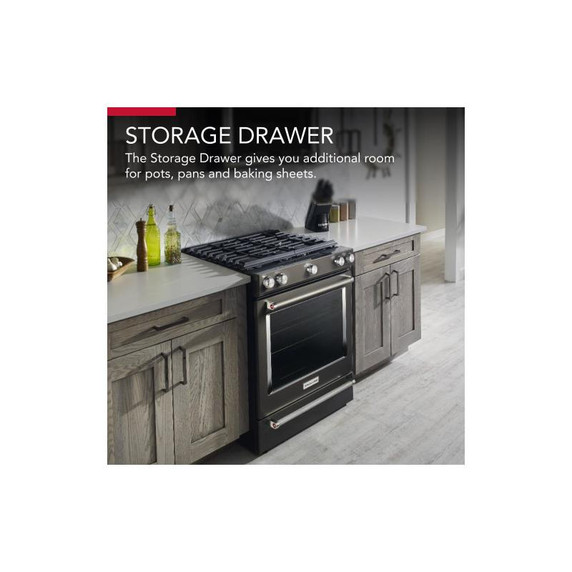

Storage DrawerAdds additional storage space that’s perfect for pots, pans and baking sheets.
Glass Touch ControlsOffer an intuitive, easy-to-use touch screen experience.

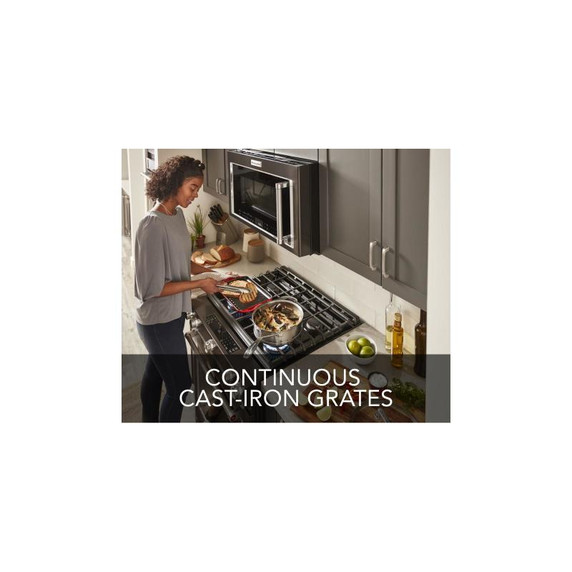

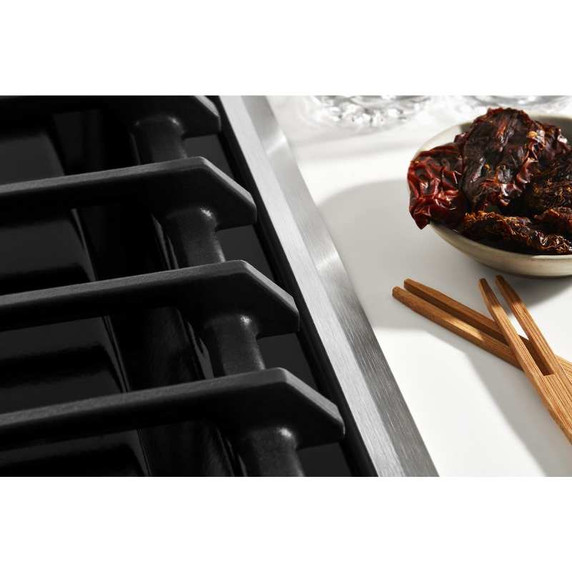

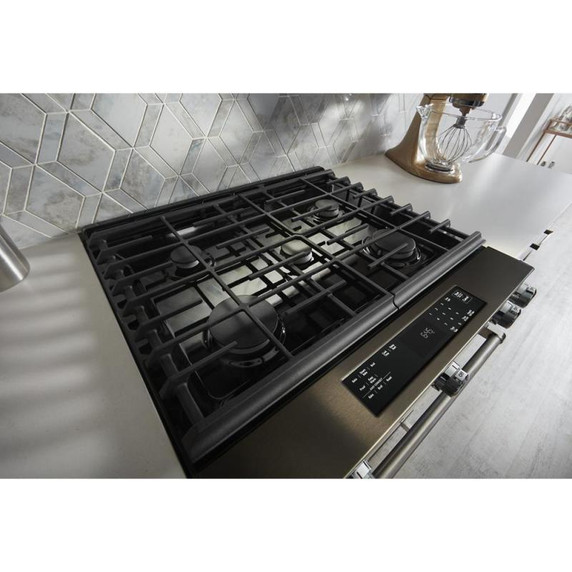

Continuous Interlocking GratesProvide a level cooking surface that lets you easily change burners and move pots and pans across the entire range.
Side Trim Accessory KitThis optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Knob TypeWeighted
Knob ColorStainless Steel
Electronic Display TypeDigital
Volts120
Hz60
Amps15
Power Cord IncludedYes
Fuel TypeGas
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainCast Iron Grates
Extended Service Plan ParentEW08IW4Y, EW08IW2Y, EW08IW1Y
Product To Product PairsKVUB600DSS, KVUB400GSS, KVWB600HBS, UVL5430JSS, KVWB400DSS, KVWB600DSS
Optional AccessoriesW10655448, W10731886, W10731887, W10675026, W10675028, W10731885, W11123246, W10655449, W10675027, W10655450
Hot Surface Indicator LightNo
LP ConvertibleYes
Automatic Convection Conversion Temperature AdjustYes
Power Outage CompatibleNo
Heating Element On Indicator LightNo
Kad RangeADA Compliant; EasyConvect™ Conversion; Even-Heat™ True Convection; FIT System; Steam Rack
ULYes
ADA CompliantYes
Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Drawer TypeStorage Drawer
Oven ConfigurationSingle Oven
Range ConfigurationSlide-In
Size In30
Range TypeSlide-in
Broiler LocationTop of Oven
Convection FunctionsBake; Broil; Roast
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Interior ColorGrey
Number Of Oven Lights2
Oven Cleaning TypeSteam Clean
Oven Cooking SystemConvection
Oven Light TypeIncandescent
Convection Element TypeFan
Oven Control TypeElectronic Touch
Number Of Oven Racks3
Bake Element Power18000BTU
Convection Element Power Watts900
Number Of Rack Guides7
Broiler Element Power13000BTU
Oven Interior Depth In Inches20.63
Oven Interior Width In Inches24.13
Oven Rack TypeHeavy Duty; Max Capacity; Steam Rack
Cooktop Element StyleSealed Burners
Cooktop Surface ColorBlack
Left Front Element Burner TypeSealed Burner
Number Of Cooking Element Burners5
Right Rear Element Burner TypeSealed Burner
Center Rear Element Burner TypeSealed Burner
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner TypeSealed Burner
Left Rear Element Burner Power5000BTU
Right Front Element Burner Power15000BTU
Auto Re IgnitionNo
Number Of Grates2
Center Rear Element Burner Power8000BTU
Left Front Element Burner Power17000BTU
Right Rear Element Burner Power9200BTU
Grate DetailsCast Iron Grates; Continuous; Dishwasher Safe; Matte Finish
Ignition TypeÉlectroniques
Carton Depth30.51"
Carton Height43.5"
Carton Width31.5"
Depth Closed Excluding Handles26.38"
Depth Closed Including Handles28.88"
Depth With Door Open 90 Degree48.75"
Gross Weight235.0 lbs.
Height36.0"
Width29.88"
Capacity FT3 (cubic feet)5.8
