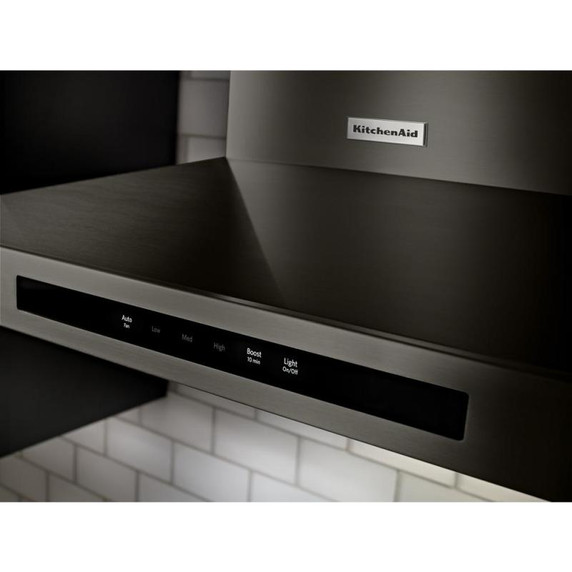

4-Speed Electronic Glass Touch ControlProvides electronic operation with visual feedback on settings and selections. Features low, medium, high and power boost settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
Power Boost FunctionAssists high-heat cooking by activating maximum fan speed for five minutes to help quickly clear smoke and steam. This function turns on automatically if the hood's sensor detects high-heat cooking on multiple burners and can also be activated manually.
Auto Speed SettingTakes the guesswork out of protecting
cabinets from steam, grease, and moisture by automatically adjusting fan speed to ventilation needs depending on the heat being produced.
Automatic Turn OnProvides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.
Removable FiltersUse multiple layers of screening to help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
One Halogen Night LightSubtly accents the kitchen with a soft, inviting glow.
Two LED Task LightsIlluminate the entire cooking surface below with natural-looking light.
Perimeter VentilationPairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU
Easy In-line ConversionConverts from a traditional set-up to an in-line blower installation for an even more quiet operation. Metal box purchase required.
65,000 BTU RatingPairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU.
585 CFM Motor Class Ventilation SystemEquips your kitchen with the powerful ventilation necessary to match the high heat of commercial-style ranges and rangetops with comparable width and total burner outputs.
Volts120
Amps15
ULYes
Control TypeElectronic
Size In30
Hood TypeWall Mount
Country Of OriginMexico
Optional AccessoriesEXTKIT14HBS, W11430925, W10692945, W10446915
Extended Service Plan ParentEW07IW4Y, EW07IW1Y, EW07IW2Y
Product To Product PairsYKFEG500EWH, KCGS550ESS, KCES550HSS, YKSEB900ESS, KFGD500ESS, KCES950KBL, KCIG550JSS, KFGG500EBS, KFGD500EBS, YKFED500ESS, YKSDB900ESS, KFDD500ESS, KFGG500ESS, KSGG700ESS, KSGG700EBS, YKSEG700ESS, KCGS350ESS, KCGS950ESS, KCES950KSS, KCIG550JBL, YKSEB900EWH, YKFEG500EBS, KCES550HBL, YKSEG700EBS, KFGG500EWH, KSGB900ESS, YKFEG500ESS
Cfm Motor Class585
Duct DirectionVertical
Duct Outlet Size In6
Duct TypeRound
FiltersGrease Filters
VentingExterior or Recirculating
Auto FunctionYes
Night LightYes
Night Light TypeHalogen
Task Light TypeLED
Task LightingYes
Carton Depth26.5"
Carton Height18.0"
Carton Width34.3"
Depth19.69"
Gross Weight56.7 lbs.
Height24.63"
Width30.0"
