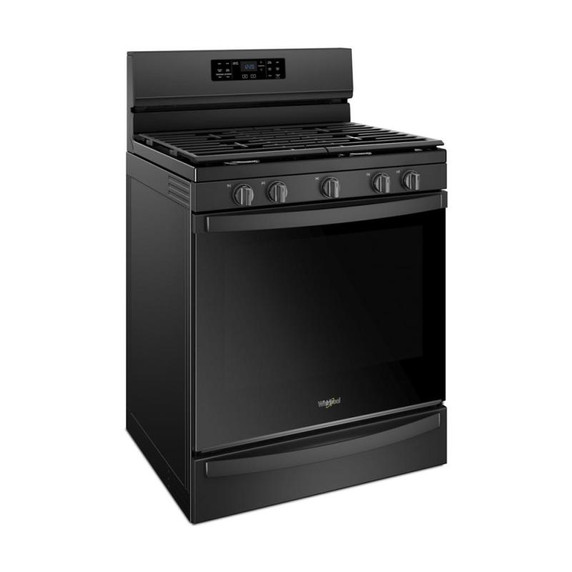

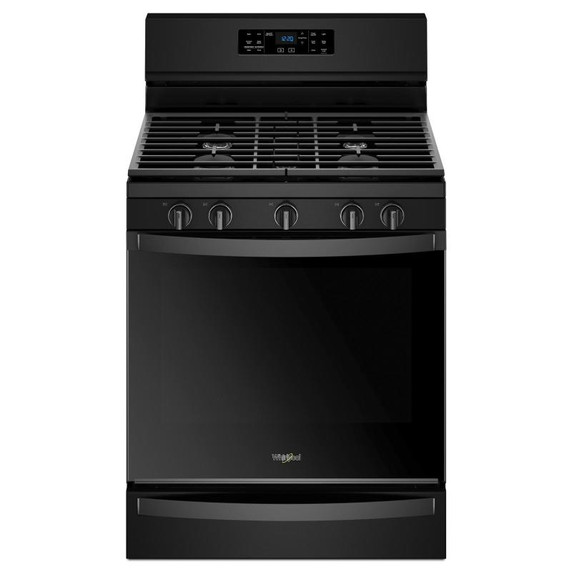

Whirlpool® 5.8 Cu. Ft. Freestanding Gas Range with Frozen Bake™ Technology WFG775H0HB
Whirlpool
Whirlpool® 5.8 Cu. Ft. Freestanding Gas Range with Frozen Bake™ Technology WFG775H0HB

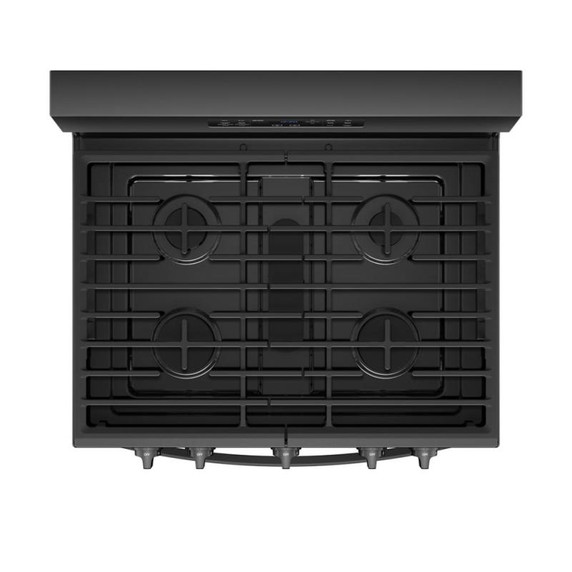

EZ-2-Lift™ Hinged Cast-Iron GratesGet quick access to spills on the cooktop with our industry-first EZ-2-Lift™ hinged cast-iron grates. The hinged design lets you wipe up under them without removing them. For a more thorough clean, the grates are also dishwasher-safe.
Frozen Bake™ technologySkip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

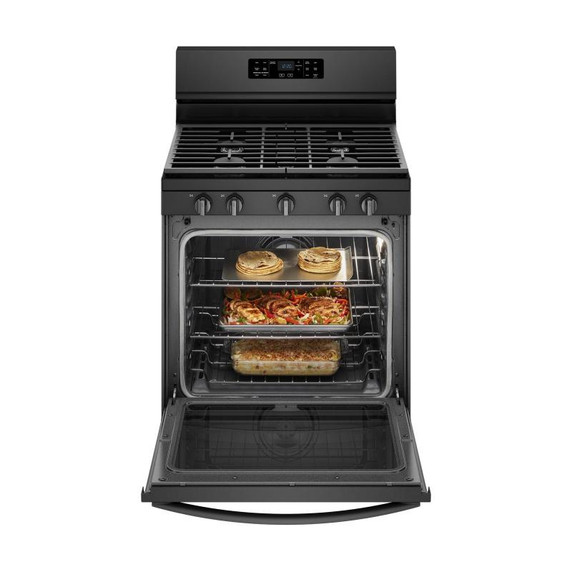

Fan Convection CookingCook meals consistently with a fan in the back of the oven that distributes hot air more efficiently. This helps eliminate cold spots so you can bake on any rack.
Fingerprint ResistantAvailable in black stainless and stainless finishes that are easy to clean and resist fingerprints and smudges.

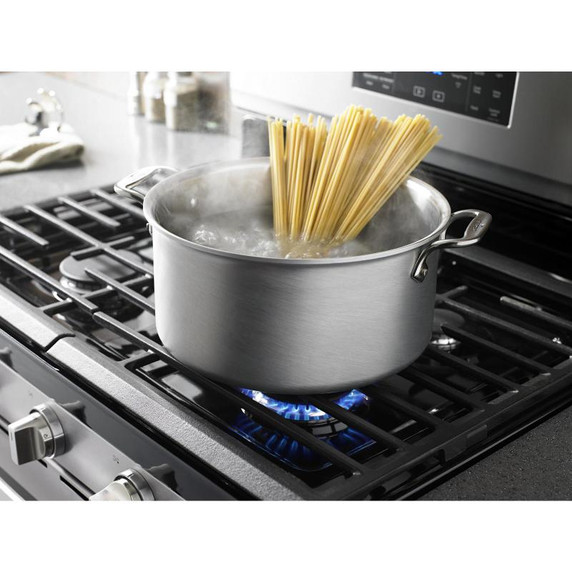

SpeedHeat™ BurnerGet dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.

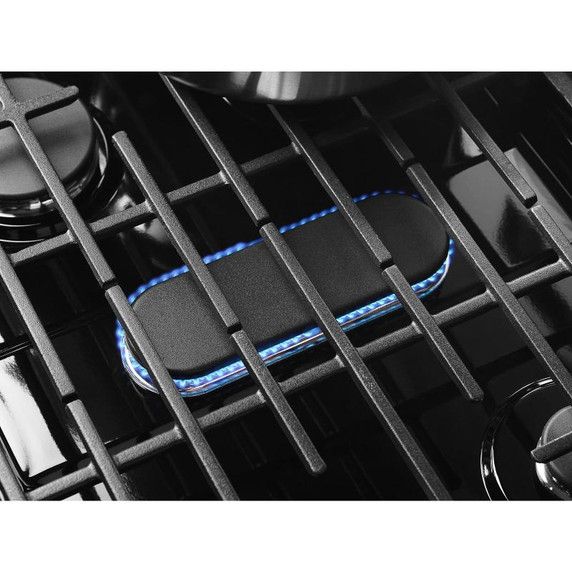

Center Oval BurnerEasily fit large griddles and other longer cookware on this fifth burner so they heat evenly on the range top.
Keep Warm SettingKeep dishes from getting cold with this setting that delivers low heat to the oven while you finish preparing your meal.
Temperature SensorGet evenly-baked food with a sensor that monitors oven temperature and adjusts the cooking elements.
GriddleMake pancakes, grill vegetables or sear steaks with the included griddle that lets you cook breakfast, lunch and dinner right on the cooktop.

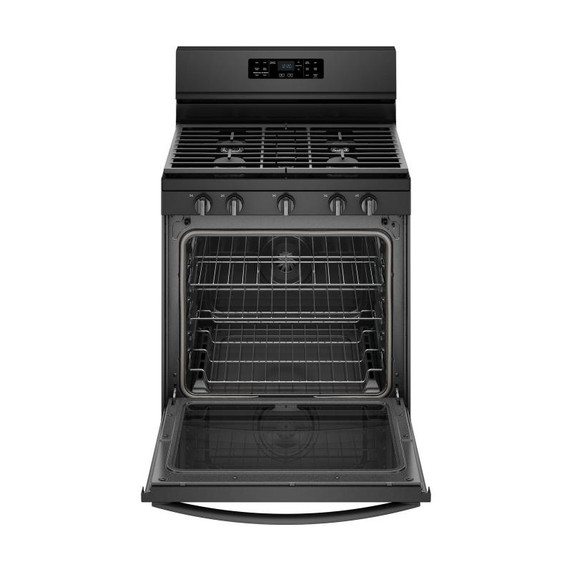

5.8 cu. ft. CapacityCook even your largest meals with 5.8 cu. ft. capacity.
Large Oven WindowKeep an eye on your meal through the large oven window.
Dishwasher-safe knobsMake cleanup easy by washing knobs right in the dishwasher.
Controls
Knob TypeWeighted
Electronic Display TypeLED
Knob ColorBlack
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Configuration and Overview
Fuel TypeGas
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Extended Service Plan ParentEW06IW2Y, EW06IW1Y, EW06IW4Y
Optional Accessories4396096RB, W11123246
Product To Product PairsWVW53UC0HV, WVW73UC0LS, WVW57UC0FS, WVU57UC0FS, WVW51UC0LS, WVU17UC0JW, UXT5530AAS, UVL5430JSS, WVU17UC0JS, WVW53UC0LS, WVU37UC0FS
Features
GriddleYes
Hot Surface Indicator LightNo
LP ConvertibleYes
Natural Gas ConvertibleYes
Automatic Convection Conversion Temperature AdjustNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Certifications
ULYes
ADA CompliantNo
CULYes
Exterior
Handle MaterialMetal
Door RemovableYes
Drawer TypeStorage Drawer
Handle ColorBlack
Handle TypeReach-Through Handle
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Description
Size In30
Range TypeFreestanding
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Oven Light Switch LocationOven Control
Interior ColorGrey
Oven Cooking SystemConvection
Number Of Oven Lights1
Oven Light TypeIncandescent
Broiler Element Power11000BTU
Convection Element TypeFan

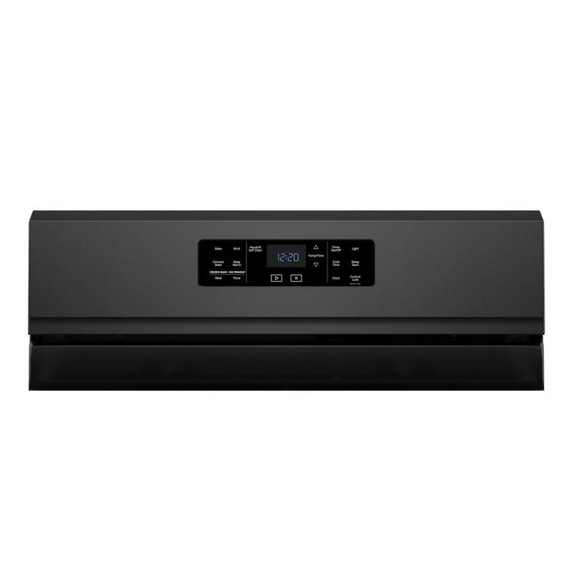

Oven Control TypeElectronic Touch
Number Of Oven Racks3
Convection FunctionsBake
Oven Control LocationRear Control
Bake Element Power18000BTU
Number Of Rack Guides7
Oven Interior Depth In Inches20.75
Oven Interior Width In Inches24.38
Oven Rack Type2 Standard and 1 Max Capacity
Oven Cleaning TypeAquaLift® Self-Clean
Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Number Of Cooking Element Burners5
Center Rear Element Burner TypeSealed Burner
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner TypeSealed Burner
Left Front Element Burner TypeHigh Output
Right Front Element Burner Power15000BTU
Auto Re IgnitionNo
Number Of Grates2
Left Front Element Burner Power18000BTU
Right Rear Element Burner TypeSimmer
Right Rear Element Burner Power5000BTU
Left Rear Element Burner Power9500BTU
Ignition TypeDirect Spark Ignition
Center Rear Element Burner Power8000BTU
Grate DetailsDishwasher Safe; Hinged; Matte Finish; Porcelain Coated Cast Grates; Recessed
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"

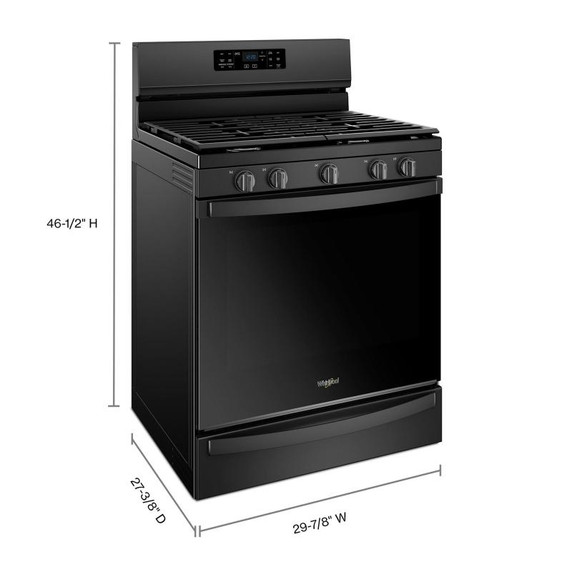

Depth Closed Excluding Handles25.31"
Depth Closed Including Handles27.38"
Depth With Door Open 90 Degree48.0"
Depth27.88"
Gross Weight208.0 lbs.
Height46.5"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)5.8
