Whirlpool, Maytag Autumn Kitchen Suite Savings Event, September 26 - October 30, 2024. Save $150 when you purchase 2 qualifying Whirlpool® or Maytag® major kitchen appliances. Save $300 on 3 or more!
Smart applianceCare smarter with connected features that let you send cooking instructions to the oven from your smartphone, control your kitchen with voice commands using a compatible voice-enabled device or skip preheating.
Multi-Step CookingMake multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to the oven all at once.* The temperature automatically adjusts based on the recipe you enter for great results.
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Fingerprint-ResistantHide fingerprints and smudges with steel that easily wipes clean. Available in Black Stainless and Stainless Steel colors.
Frozen Bake™ TechnologySkip preheating and cook frozen favorites like pizza and lasagna faster with preprogrammed settings that automatically adjust cooking times for you.
True Convection CookingCook foods faster with the addition of a third element plus a fan that distributes hot air evenly over, under and around food so dinner is ready when they are.

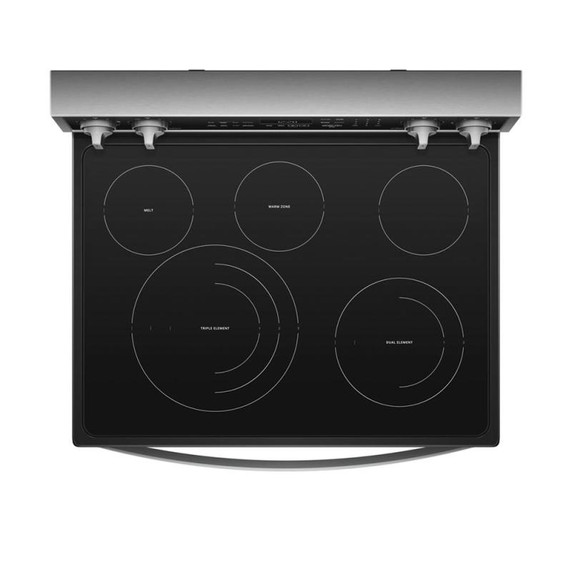

FlexHeat™ Triple Radiant ElementGet three elements in one with a 6" inner ring that's great for smaller pots and pans, and 9" and 12" outer rings that make room for larger cookware.
FlexHeat™ Dual Radiant ElementGet two elements in one with a 6" inner ring that's great for smaller pots and pans and a 9" expandable outer ring that makes room for larger cookware.
Remote StartWhen set to remote enable, use your smartphone or tablet to remotely turn your oven on so it’s heated up and ready to cook meals when you are.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Party ModeStart preparing for guests from your smartphone or tablet. With remote start enabled, this mode automatically turns on the Keep Warm setting so dishes stay ready to serve.
Control Lock ModeDisable the control panel to avoid unintended use and easily clean controls.
Enhanced TroubleshootingGet immediate support for quick solutions by using your smartphone or tablet to access troubleshooting videos.
Guided ServiceKeep track of scheduled appointments and make sure issues are known using the Whirlpool® app to send data from the appliance directly to Whirlpool brand customer service
Sabbath ModeAllows the door of the beverage center to be opened or closed during the Sabbath or other religious holidays without directly turning on or off any lights, digital readouts, solenoids, fans, valves, icons, tones, alarms or the compressor.
AquaLift® Self-Cleaning TechnologyAquaLift® Self-Cleaning Technology
Temperature SensorGet evenly-baked food with a sensor that monitors oven temperature and adjusts the cooking elements.
Rapid PreheatSave time with faster preheating.* A rear fan combined with the use of all of the elements helps to heat the oven quickly.
*Single-rack baking with Rapid Preheat option versus two-rack without option.

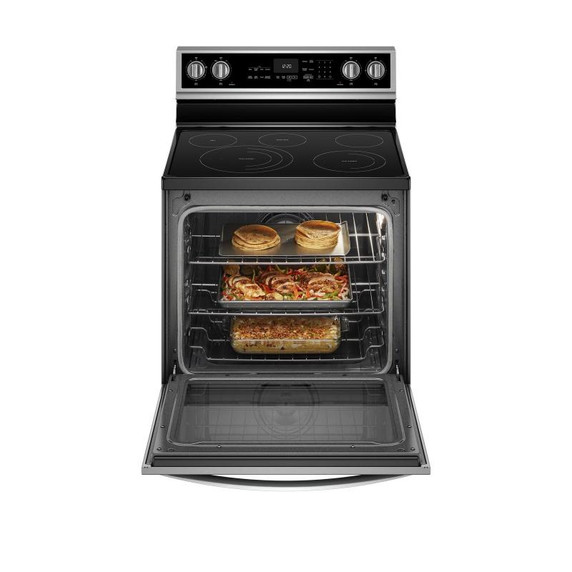

6.4 cu. ft. CapacityEasily make large family meals with 6.4 cu. ft. capacity.
Easy-Wipe Ceramic Glass CooktopWiping up spills is simple with the easy-to-clean cooktop.
Large Oven WindowKeep an eye on your meal through the large oven window.

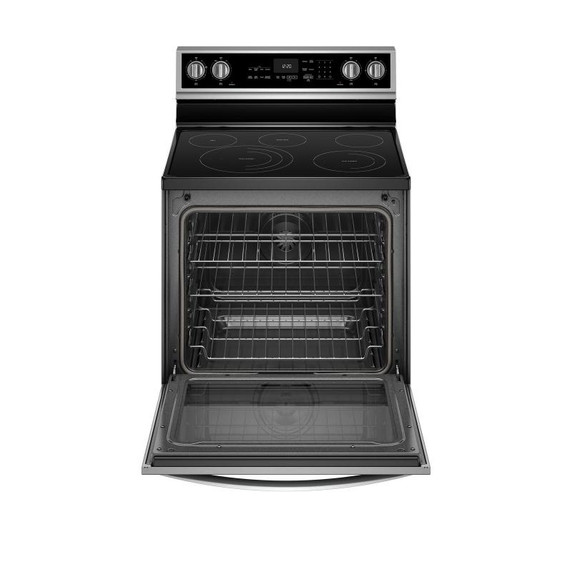

Max Capacity RackMake plenty of room for large items with a max capacity rack.
Hidden Bake ElementGet easier oven cleaning with a hidden bake element.
Dishwasher-Safe KnobsRemove the dishwasher-safe knobs for easier cleaning.
Country Of OriginUSA
Dishwasher SafeNo
Optional AccessoriesW10355051B
Extended Service Plan ParentEW06IW2Y, EW06IW4Y, EW06IW1Y
Product To Product PairsUXT5530AAS, UXT5230BDS, WVU17UC0JW, UXT4130ADS, WVW53UC0LS, WVU37UC0FS, UVL5430JSS, WVW73UC0LS, WVW53UC0HV, WVW57UC0FS, WVW51UC0LS, WVU17UC0JS, WVU57UC0FS
Volts120
Hz60
Power Cord IncludedYes
Amps40
ULYes
ADA CompliantNo
CULNo
Energy Rating Kwh Year609
Handle MaterialMetal
Handle ColorStainless Steel
Door RemovableYes
Drawer TypeStorage Drawer
Handle TypeReach-Through Handle
Knob TypeWeighted
Knob ColorStainless Steel
Right Front Element Burner TypeDual
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop Element StyleCeran
Left Front Element Burner Power3000W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Right Front Element Burner Power3000W
Right Front Element Burner Size9in./6in.
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Center Rear Element Burner TypeWarming
Left Front Element Burner Size12in./9in./6in.
Left Front Element Burner TypeTriple
Cooktop Control LocationBackguard
Left Rear Element Burner Power1300W/300W
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Automatic Convection Conversion Temperature AdjustNo
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Broiler LocationTop of Oven
Convection FunctionsBake; Broil; Roast
Hidden Bake ElementYes
Oven Light Switch LocationOven Control
Oven Light TypeHalogen
Broiler Element Power3600W
Interior ColorGrey
Oven Cooking SystemConvection
Number Of Oven Lights1
Cooktop Surface MaterialCeramic Glass
Oven Control TypeElectronic Touch
Number Of Oven Racks3
Oven Control LocationRear Control
Convection Element Power Watts900
Number Of Rack Guides7
Convection Element TypeTrue
Oven Interior Depth In Inches20.75
Oven Interior Width In Inches24.38
Oven Rack Type2 Standard and 1 Max Capacity
Bake Element Power3600W
Oven Cleaning TypeAquaLift® Self-Clean
Fuel TypeElectric
Size In30
Range TypeFreestanding
Annual Energy Usage Kwh609
Whr RangeBladed Knob; FlexHeat™ Dual Element; FlexHeat™ Triple Radiant Element; Frozen Bake™ Technology; True Convection
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Depth Closed Excluding Handles25.31"
Depth Closed Including Handles27.38"
Depth With Door Open 90 Degree47.88"
Depth27.38"
Gross Weight180.0 lbs.
Height46.5"
Width29.88"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)6.4
