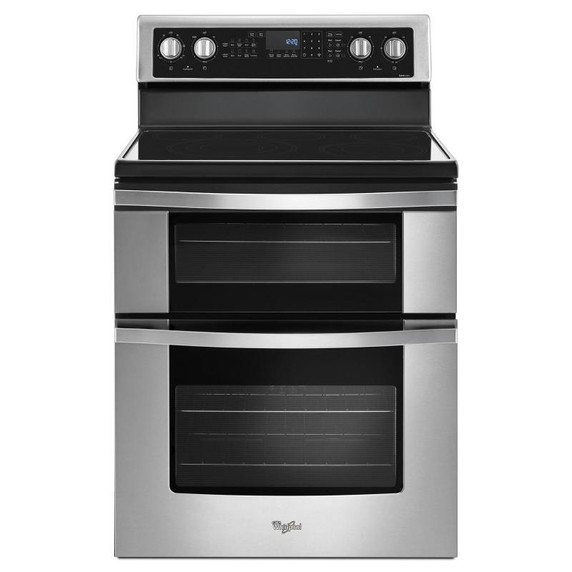

Whirlpool® 6.7 Cu. Ft. Electric Double Oven Range with True Convection YWGE745C0FS
Whirlpool
Whirlpool® 6.7 Cu. Ft. Electric Double Oven Range with True Convection YWGE745C0FS

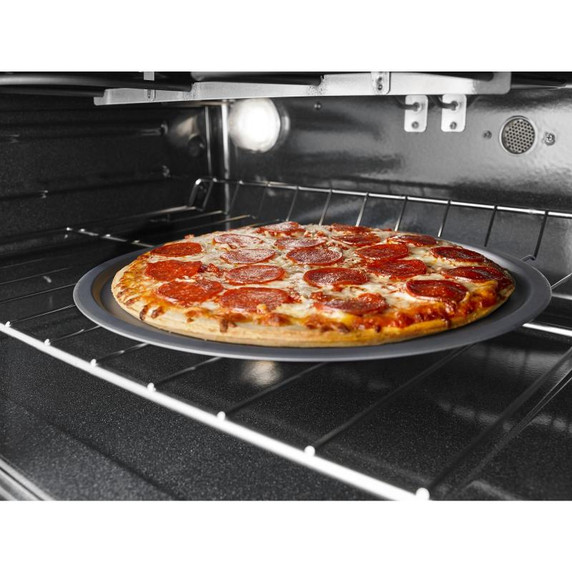

Frozen Bake™ TechnologySkip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster.
True Convection CookingTrue convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.

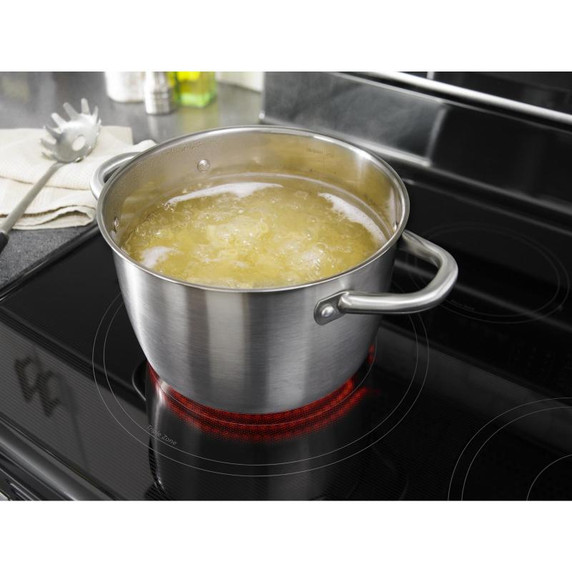

FlexHeat™ Triple Radiant ElementThe FlexHeat™ triple radiant element is like having three elements in one. A 6" inner ring is great for smaller pots and pans, while 9" and 12" outer rings make room to heat larger cookware.
Convection ConversionYour oven will do the math for you when you need to convert traditional recipes for convection cooking, automatically adjusting cooking times and temperatures.
SteamClean OptionThe SteamClean option saturates baked on messes with water and high heat so they wipe up quickly.
Temperature SensorA built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.
Rapid Preheat (Lower Oven Only)Save time when you only need to bake on one rack. Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly.
Hidden Bake ElementA Hidden Bake Element under the floor of the oven creates a smooth surface inside the oven that’s easy to clean.
Controls
Knob TypeWeighted
Electronic Display TypeDigital
Knob ColorBlack Stainless
Electrical
Volts120
Hz60
Power Cord IncludedYes
Amps40
Configuration and Overview
Fuel TypeElectric
Energy
Annual Energy Usage Kwh527
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Optional AccessoriesW10355051B
Extended Service Plan ParentEW08IW1Y, EW08IW4Y, EW08IW2Y
Product To Product PairsWVU17UC0JS, UXT5230BDS, WVW51UC0LS, WVW73UC0LS, WVW53UC0HV, WVU17UC0JW, UXT4130ADS, WVW57UC0FS, UXT5530AAS, UVL5430JSS, WVU37UC0FS, WVW53UC0LS, WVU57UC0FS
Features
Heating Element On Indicator LightYes
Automatic Convection Conversion Temperature AdjustYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Refinements
Whr RangeBladed Knob; Frozen Bake™ Technology; Self-Cleaning; True Convection; Whirlpool Handle
Certifications
ULYes
ADA CompliantNo
Energy Rating Kwh Year527
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Door RemovableYes
Configuration
Range ConfigurationFreestanding

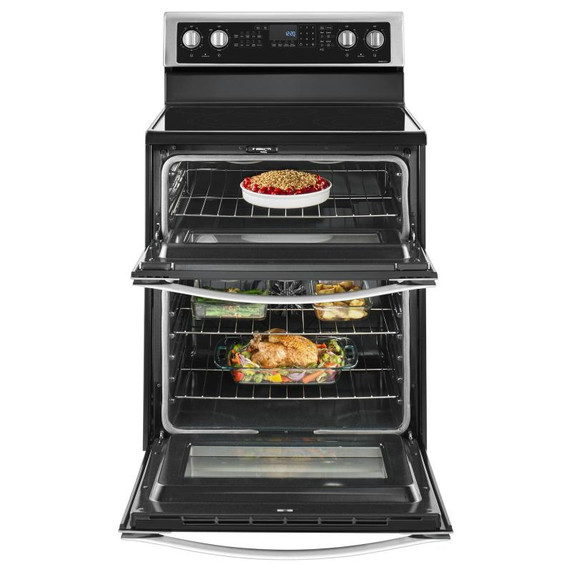

Oven ConfigurationDouble Oven
Description
Size In30
Range TypeFreestanding Double Oven
Details
Broiler LocationTop of Oven
Broiler Element Power3600W
Interior ColorGrey
Oven Cleaning TypeSteam Clean
Number Of Oven Lights1
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Bake Element Power2000WBoth
Cooktop Surface MaterialCeramic Glass
Number Of Oven Racks1 Upper-2 Lower
Number Of Rack Guides2 Upper-5 Lower

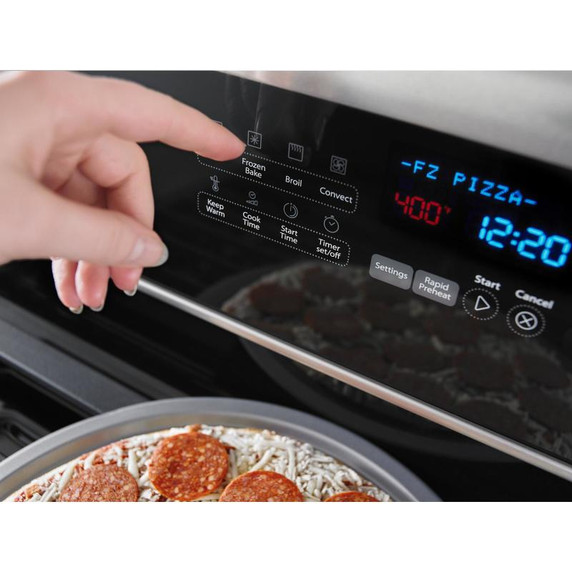

Oven Control TypeElectronic Touch
Oven Cooking SystemThermal Upper-Convection Lower
Oven Control LocationRear Control
Convection Element TypeTrue
Convection Element Power Watts1600
Convection FunctionsBake Lower; Broil Lower; Roast Lower
Hidden Bake ElementYes Both

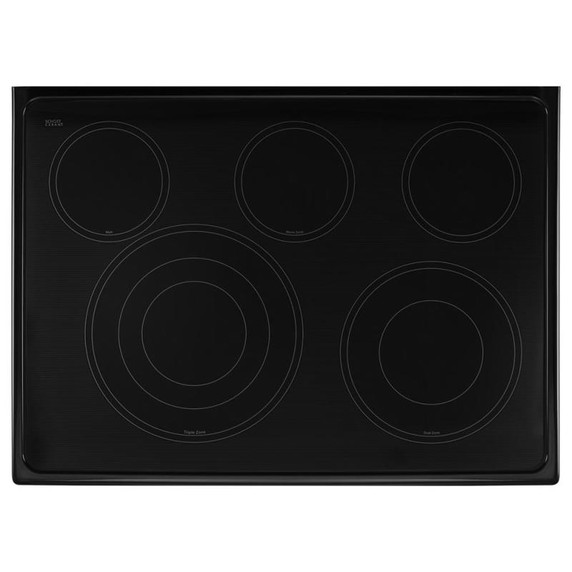

Cooktop Details
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop Element StyleCeran
Left Front Element Burner Power3000W
Left Rear Element Burner Size6in.
Right Front Element Burner Power3000W
Right Front Element Burner Size9in./6in.
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Left Front Element Burner Size12in./9in./6in.
Left Front Element Burner TypeTriple
Right Front Element Burner TypeStandard Radiant
Cooktop Control LocationBackguard
Left Rear Element Burner TypeStandard Radiant
Right Rear Element Burner TypeStandard Radiant
Center Rear Element Burner TypeStandard Radiant
Left Rear Element Burner Power300W/1300W
Carton Depth30.25"
Carton Height49.5"
Carton Width30.75"
Depth Closed Excluding Handles27.25"
Depth With Door Open 90 Degree46.0"
Depth26.13"
Gross Weight225.0 lbs.
Height47.13"
Net Weight0.0 lbs.
Width29.94"
Cutout Height36.0"
Cutout Width30.13"
Capacity FT3 (cubic feet)6.7
