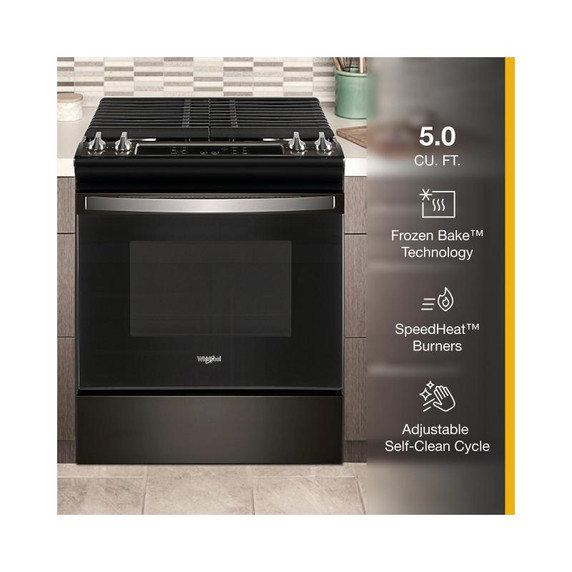

Frozen Bake™ TechnologySkip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

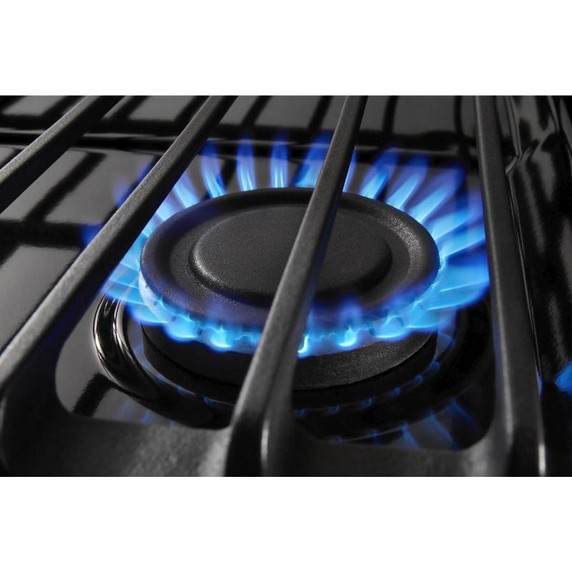

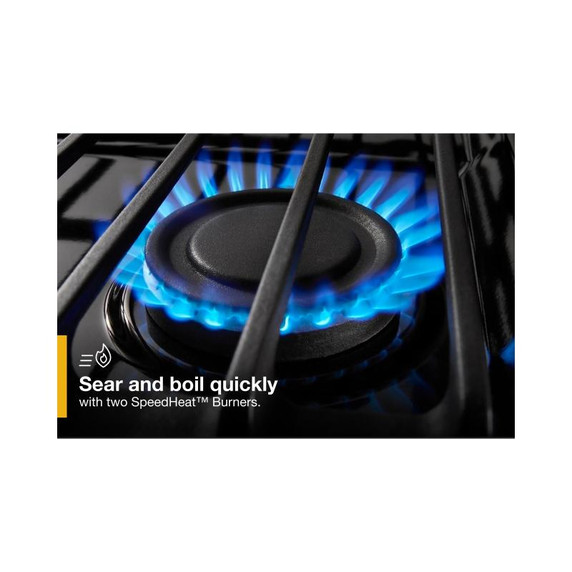

Two SpeedHeat™ BurnersGet dinner to the table fast with two SPEEDHEAT Burners that generate the high heat needed to sear and boil quickly.

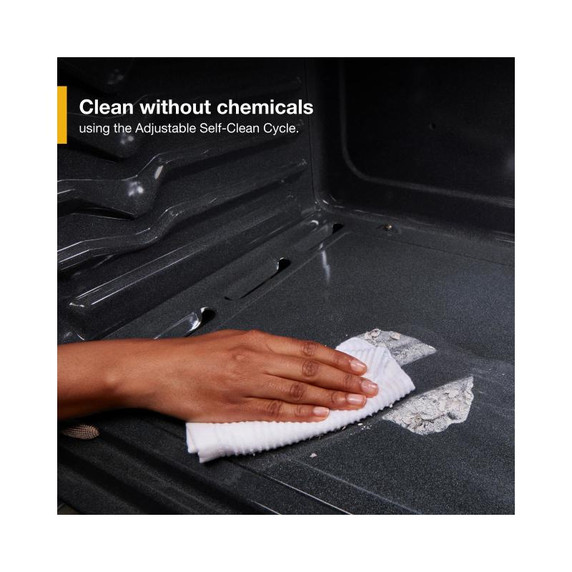

Adjustable Self-Clean CycleClean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.

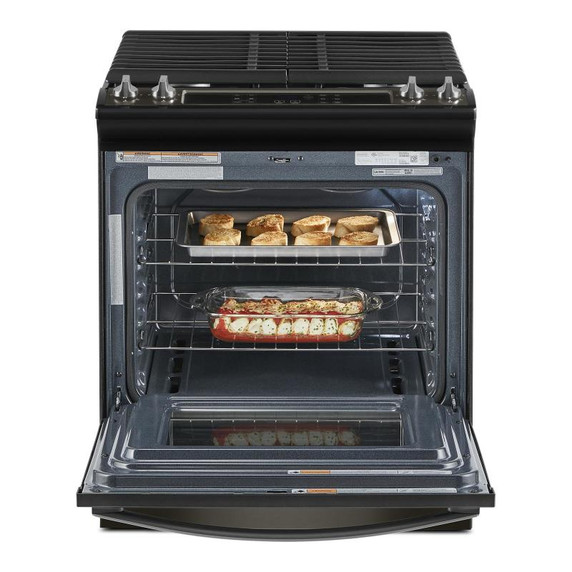

5.0 Cu. Ft. CapacityEasily cook large meals with 5.0 Cu. Ft. Capacity

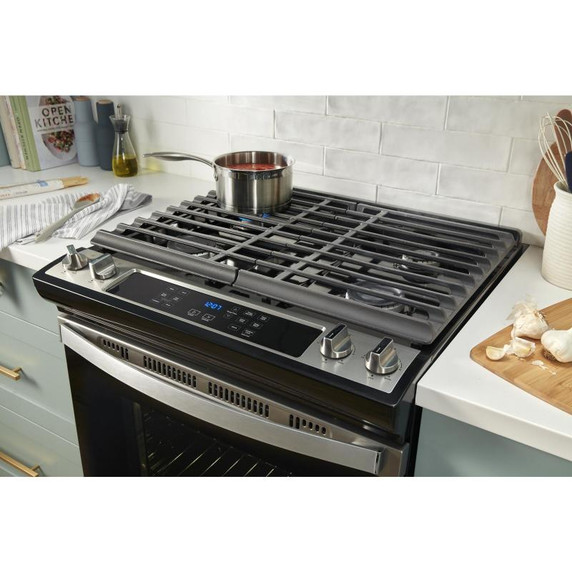

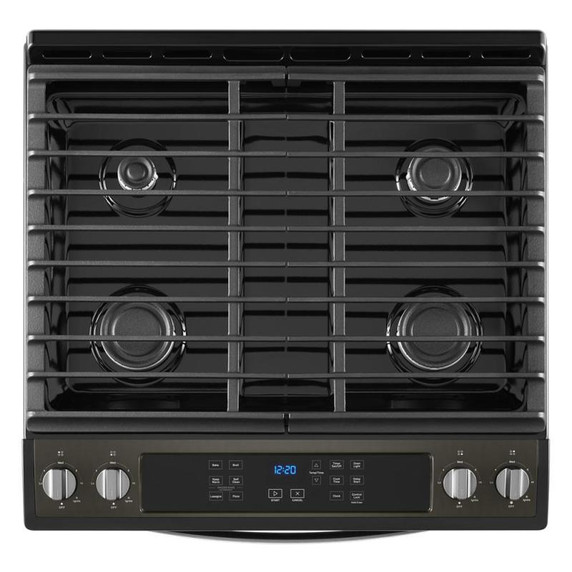

Edge-to-Edge Cast-Iron GratesGet more space to sauté, boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to place pots and pans anywhere.

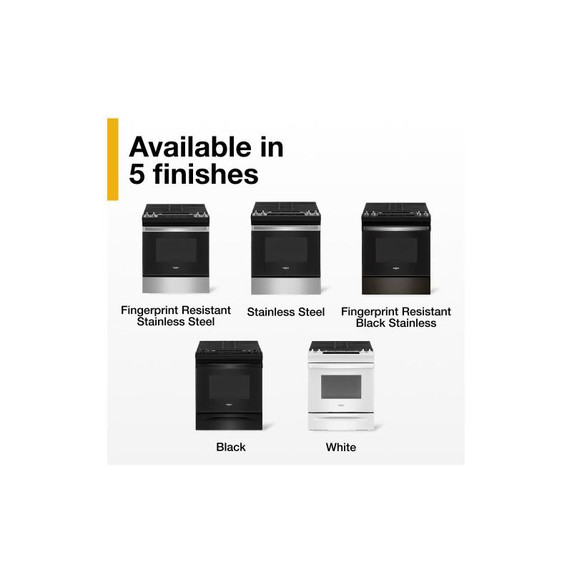

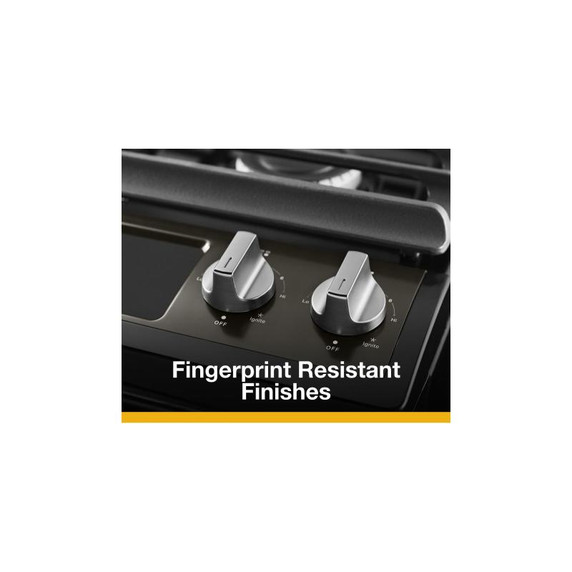

Fingerprint ResistantResists fingerprints and smudges with steel that easily wipes clean. Available in Black Stainless Steel and Stainless Steel colors.
Keep Warm SettingKeep dishes from getting cold with this setting that delivers low heat to the oven while you finish preparing your meal.

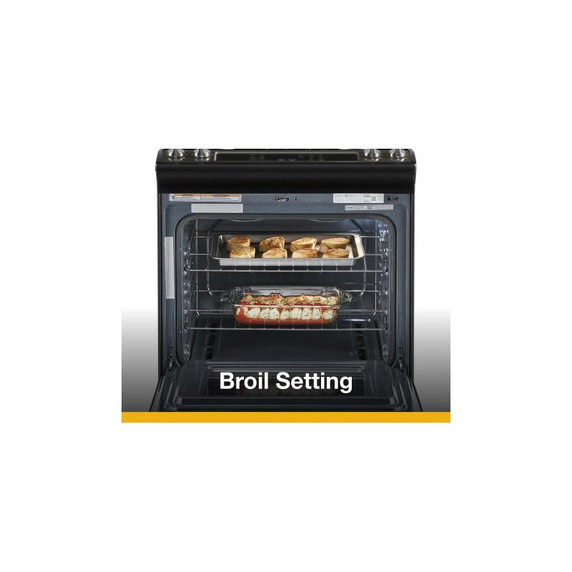

Broil SettingWhen you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.
Delay StartProgram the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.
Cooktop Indicator LightsNotice when the cooktop’s still on or hot with Cooktop Indicator Lights, so you can finish every meal with added peace of mind.

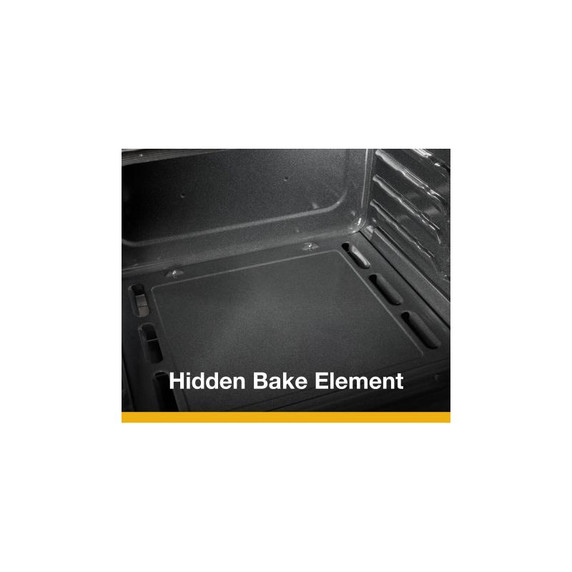

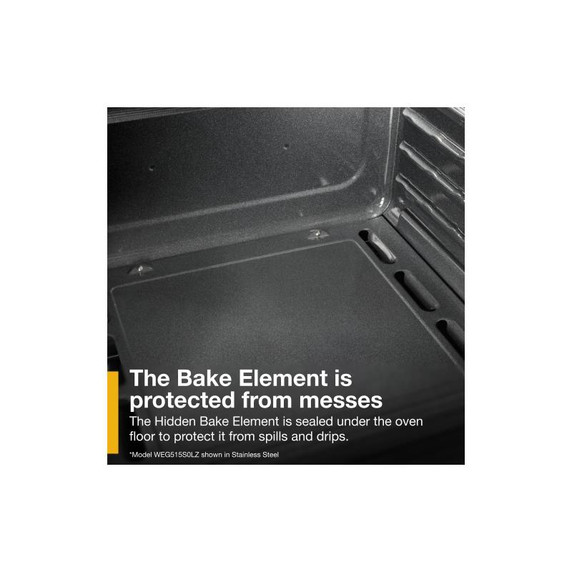

Hidden bake elementThe hidden bake element is sealed under the oven floor to protect it from spills and drips.
ADA compliantThis range meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Sabbath ModeAllows the door of the beverage center to be opened or closed during the Sabbath or other religious holidays without directly turning on or off any lights, digital readouts, solenoids, fans, valves, icons, tones, alarms or the compressor.
Country Of OriginUSA
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Dishwasher SafeNo
Extended Service Plan ParentEW06IW2Y, EW06IW1Y, EW06IW4Y
Optional AccessoriesW10675026, W10115773, W10731885, W10731886, W10675027, W10675028, W10655449, W10655450, W10731887, W10655448, 4396096RB
Product To Product PairsWVU37UC0FS, WVU17UC0JW, WVW53UC0LS, UVL5430JSS, WVW73UC0LS, WVW51UC0LS, WVW57UC0FS, WVU17UC0JS, WVU57UC0FS, UXT5530AAS, WVW53UC0HV, UXT5230BDS
Volts120
Hz60
Power Cord IncludedYes
Amps40
ULYes
ADA CompliantYes
Handle MaterialMetal
Door RemovableYes
Handle ColorBlack Stainless
Drawer TypeStorage Drawer
Handle TypeReach-Through Handle
Heating Element On Indicator LightYes
Hot Surface Indicator LightNo
LP ConvertibleYes
Natural Gas ConvertibleYes
GriddleN/A
Automatic Convection Conversion Temperature AdjustNo
Power Outage CompatibleYes
Total Gas Btus Cooktop44,500
Total Gas Btus Oven S16,500

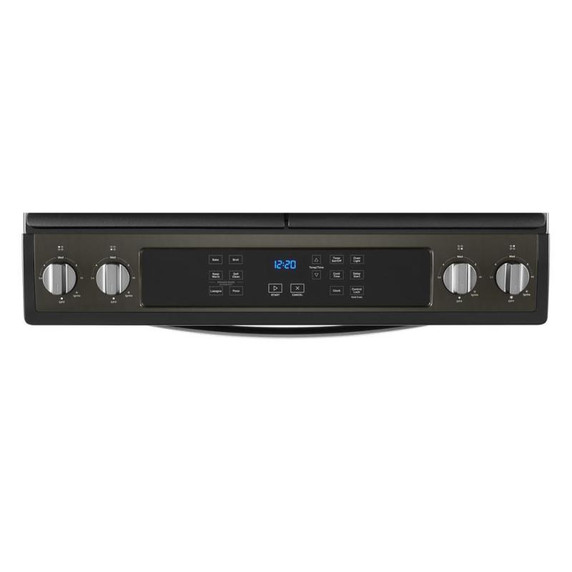

Cooktop Control LocationFront

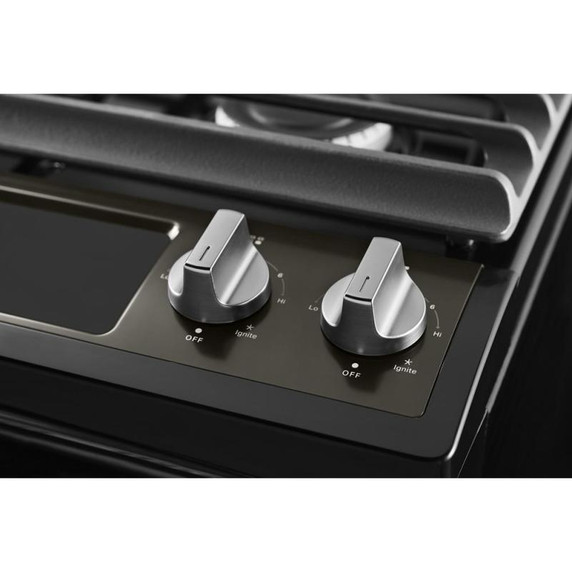

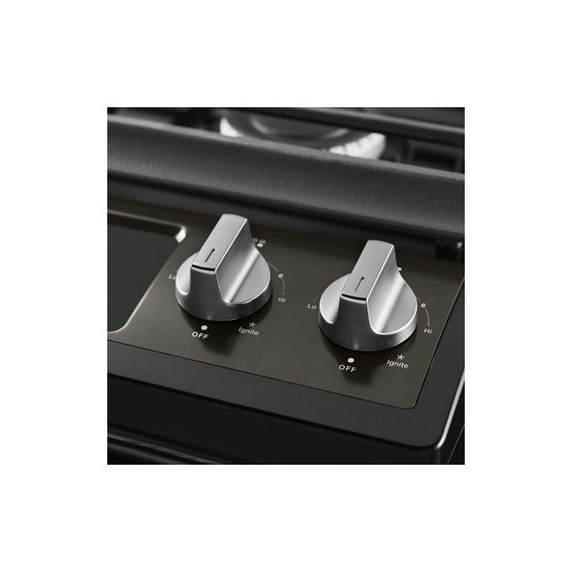

Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop ConfigurationAll Burners
Number Of Cooking Element Burners4
Right Rear Element Burner TypeStandard
Left Rear Element Burner TypeSimmer
Left Front Element Burner Power15000BTU
Left Front Element Burner TypeHigh Output
Left Rear Element Burner Power5000BTU
Right Front Element Burner Power15000BTU
Right Front Element Burner TypeHigh Output
Right Rear Element Burner Power9500BTU
Auto Re IgnitionNo
Number Of Grates2
Ignition TypeÉlectroniques
Grate DetailsContinuous; Matte Finish; Porcelain Coated Cast Grates
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Oven Control LocationFront Control
Oven Light Switch LocationOven Control
Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Interior ColorDark Grey
Number Of Oven Lights1
Oven Control TypeTap Touch
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Bake Element Power16500BTU
Broiler Element Power1300W
Convection FunctionsNo
Size In30
Range TypeSlide-in
Knob TypePlastic
Electronic Display TypeLED
Knob ColorBlack Stainless
Fuel TypeGas
Carton Depth30.5"
Carton Height43.5"
Carton Width31.5"
Depth Closed Excluding Handles28.13"
Depth Closed Including Handles28.94"
Depth With Door Open 90 Degree47.38"

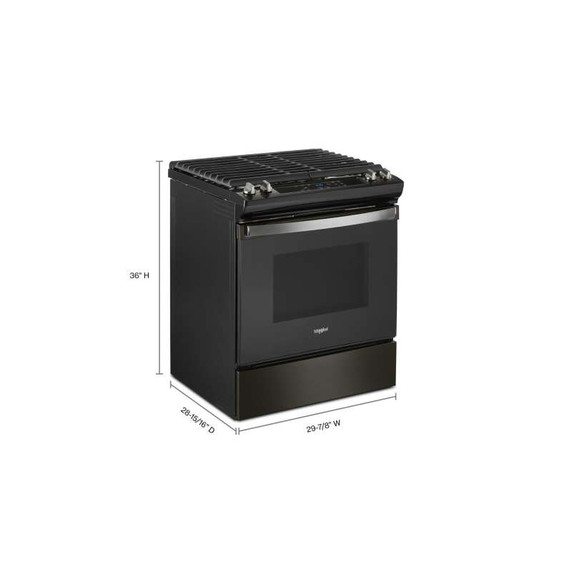

Depth28.94"
Gross Weight200.0 lbs.
Maximum Height37.0"
Minimum Height36.0"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.13"
Capacity FT3 (cubic feet)5.0
